8-4. DLR-F9 Experiment
Large model wanted to investigate detailed flow quality at high wing root area
Full wing span larger than tunnel size: Use of cropped wing with circulation control
Windtunnel TWG: model support |

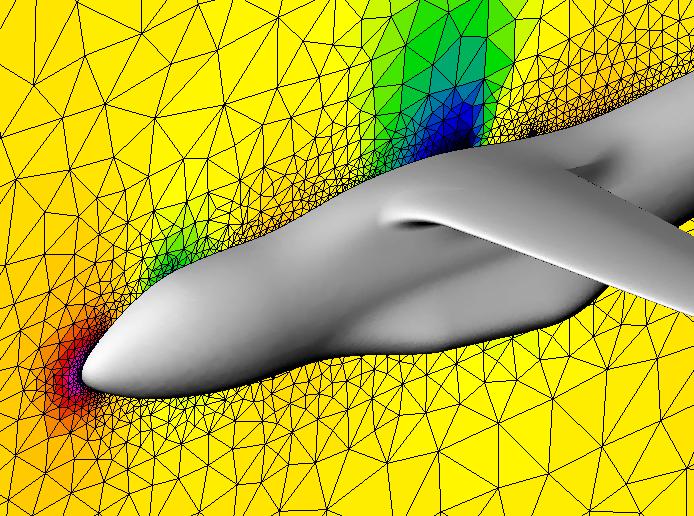

Unstructured grid for CFD simulation |

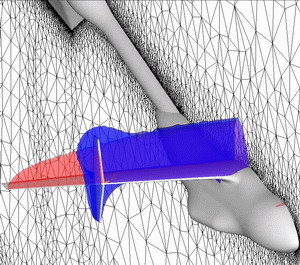

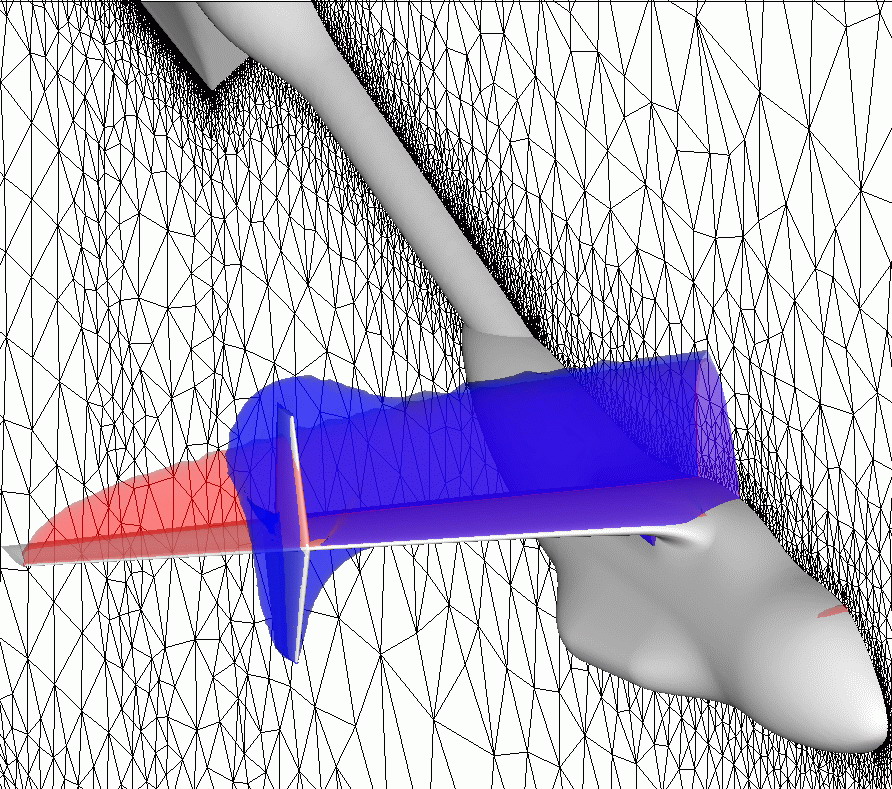

CFD: Sonic surfaces on full and cropped wing, calibration of CCSB |

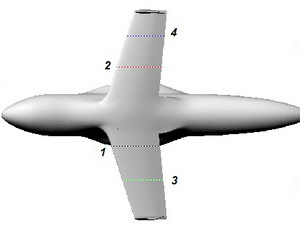

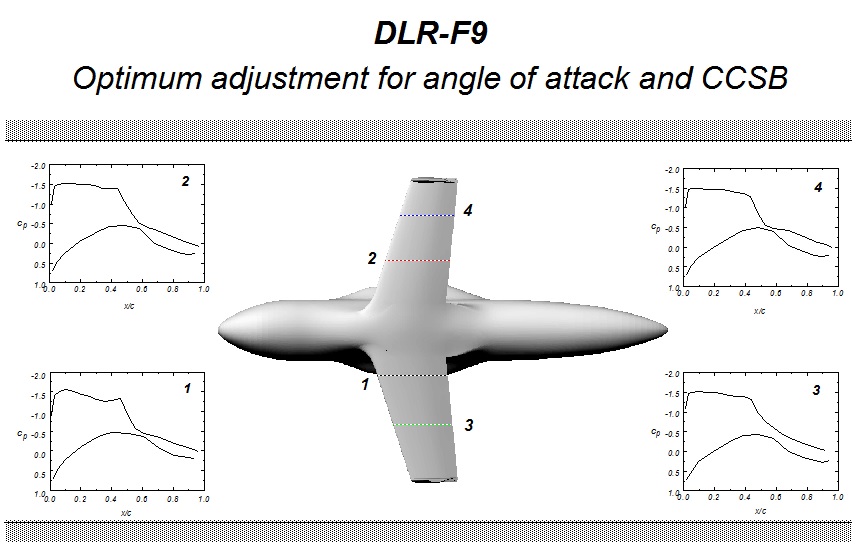

Four sections for pressure distribution measurements |
