9-4. Optimization strategies

Various optimization concepts, from Simplex Method to Genetic Algorithm

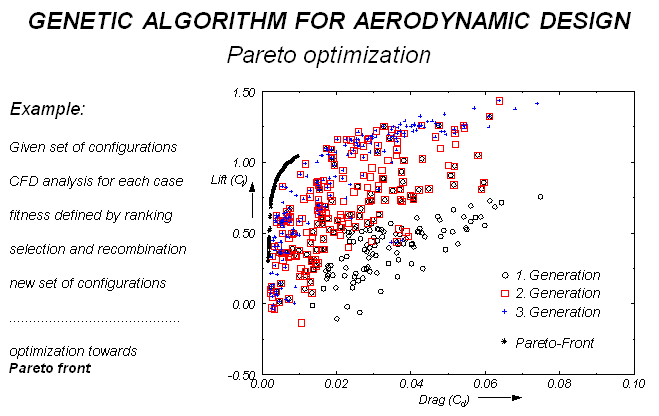

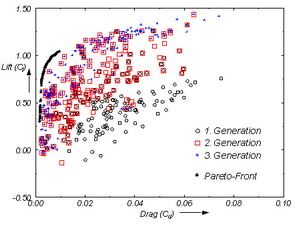

Shape populations evaluated and driven toward optimum target function



Lift and drag found by CFD analysis for each airfoil shape

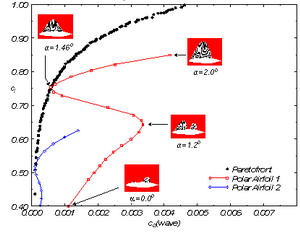

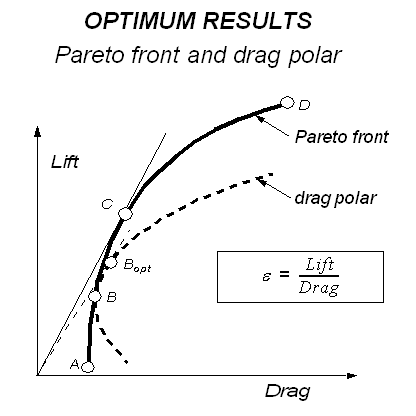

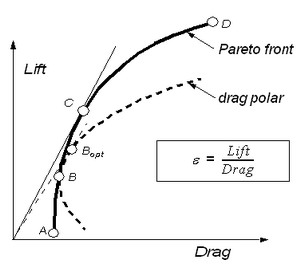

Pareto front and drag polar, target function is the ratio Lift/Drag

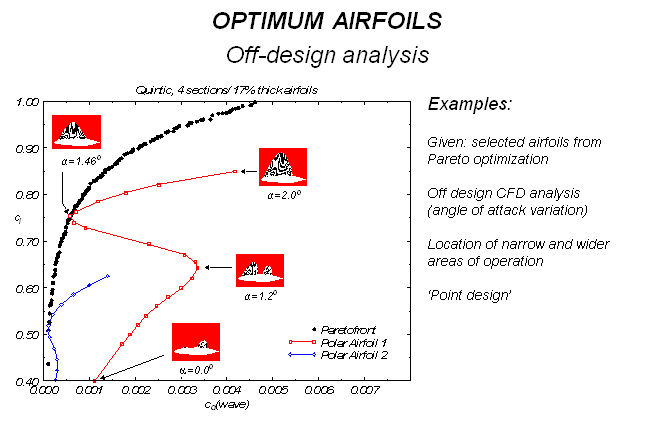

Selection of individual design results: Useful and extreme design results

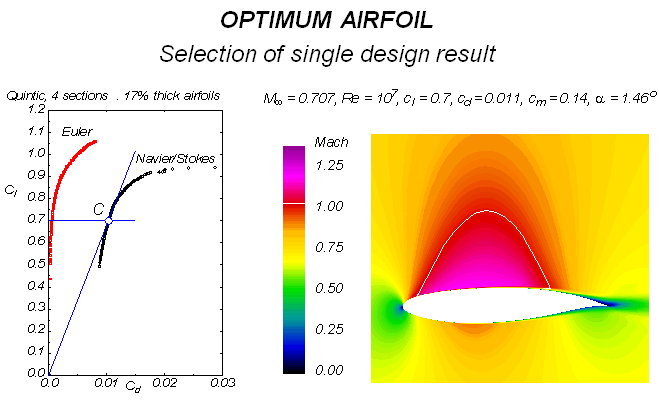

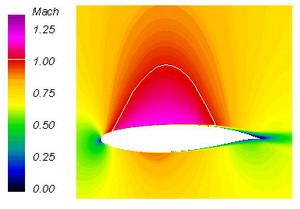

Selection of a design result showing shock-free viscous flow



2015
