5. Parameterized shapes

Application of analytical functions to model aerodynamic shapes based on flow phenomena

Wings, Control surfaces and data generation for commercial CAD systems

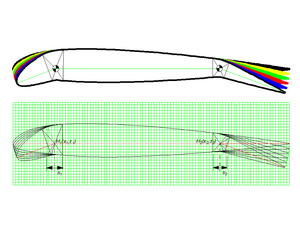

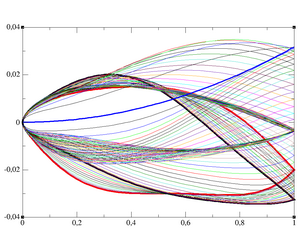

PARSEC airfoil functions with 11 basic, extensions to 29 and finally 50 parameters

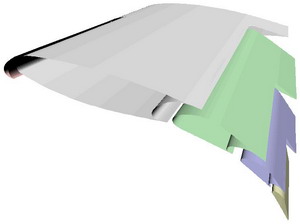

Geometric modelling of control surfaces, here: wing with slat and flaps

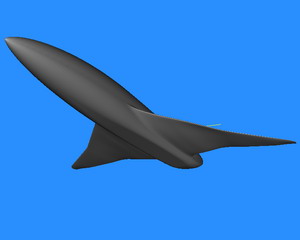

Wing sections from root to tip modelled by spanwise variation of airfoil parameters

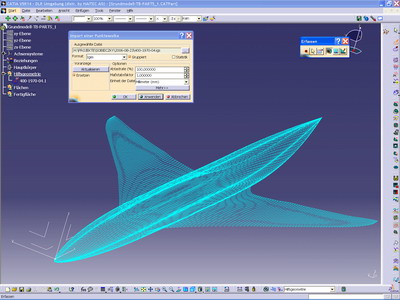

Data of airfoils and configurations for commercial CAD systems
