7-3. Osculating Axisymmetry

Known flow fields extended by spanwise high accuracy approximations

Shock waves with variable cross section signature and axial curvature prescribed

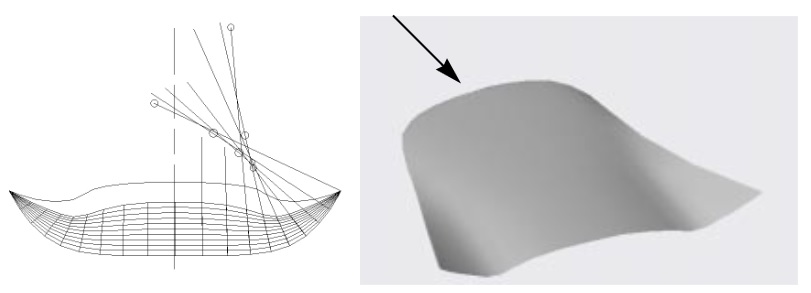

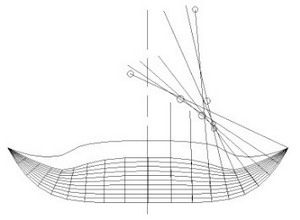

Osculating Cones (OC) Waveriders

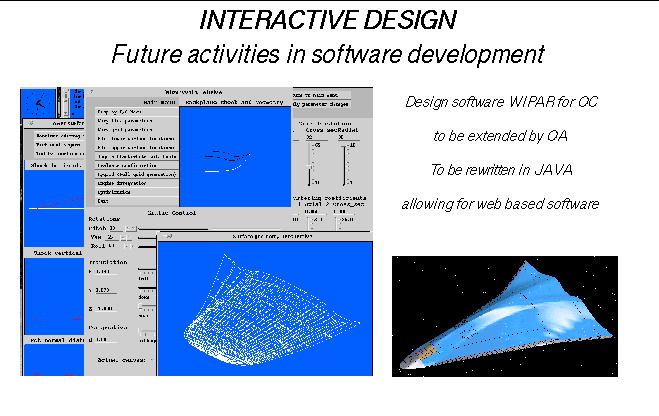

Interactive design code for OC waveriders

Curved shocks generate convex contours

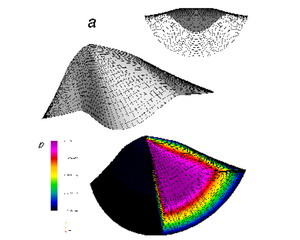

Various shapes designed by parameterized shock signature and flow capture tube



2015
